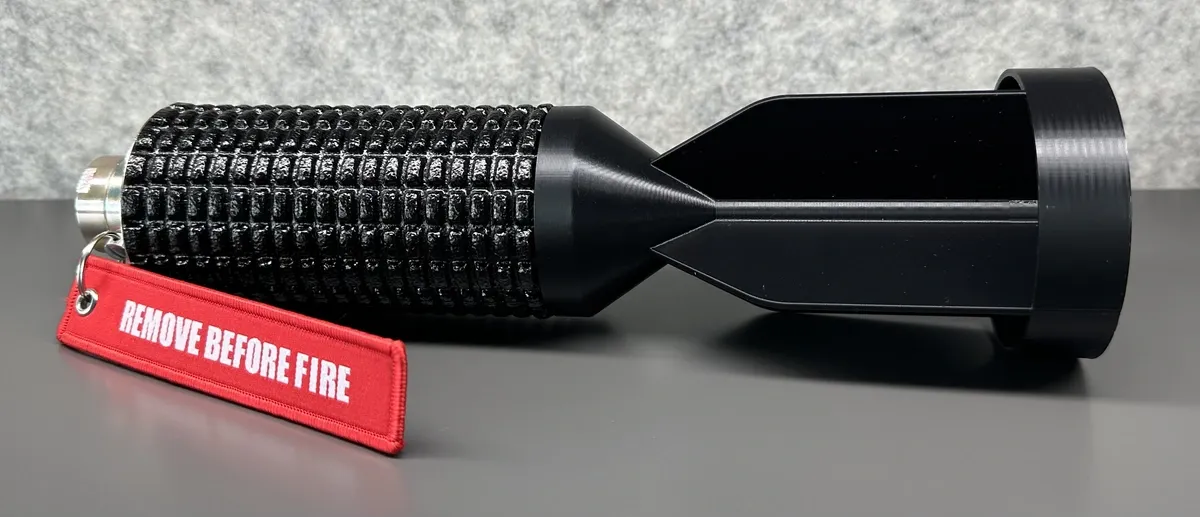

Unguided aerial munitions for UAVs.
NSN: 1325-61-017-8724
Tactical and technical data
| Parameter | Value |
|---|---|
| Diameter | 60 mm |
| Ammunition length | 290 ± 10 mm |
| Weight of the ammunition | max. 1700 g |
| Instantaneous fuze, such as | VPN1 |
| Type of explosive | OKFOL 3,5/A-IX-1 or analog |
| Mass of explosive | 200-250 g |
| Radius of total defeat (not less than) | 7 m |
| Operating temperature | -40 to +50 °C |
| Maximum discharge height | 500 m |
| Minimum discharge height | 50 m |
| Packing | Each ammunition is packed in a tube and vacuum sealed in a bag placed in a wooden box |
| Wooden case dimensions (L/W/H) | 675/523/480 mm |
| Weight (of a wooden box) | Net: 51 kg Gross: 76 kg |
